4 axis hot wire foam cutting machine

The 4 axis CNC hotwire foam cutting machine 400I Sniper by Nettuno Sistemi is a professional foam cutting machine developed to be used for a large variety of industrial needs.

Our foam cutter machine

The CNC (Computer Numerical Control) machine 400I Sniper is designed for hot wire cutting of polystyrene. The machine combine advanced technology with ease of use, allowing for precise cuts both on large blocks and smaller details.

It is ideal for a wide range of industrial applications, thanks to numerical control, which automates and optimizes the cutting processes, ensuring consistent, high-quality results. The 400I Sniper is intended for those seeking efficiency in the construction industry, with a focus on innovation and ease of use.

Hot wire cutting machine for

Expanded polystyrene

Extruded polystyrene

Graphite polystyrene

Reinforced structure

Specifically designed and built to provide solidity and stability during the various cutting stages, and for the preparation for all available optionals.

The main structure is constructed using large milled steel and anodised aluminium profiles, providing robustness and stability.

400I Sniper is indeed prepared for the application of Horizontal and Vertical Lathes, Excavator, Multifile System, and Clevel®.

Versatility of 400I Sniper

Wire with no limits

4 independent axes foam cutting machine

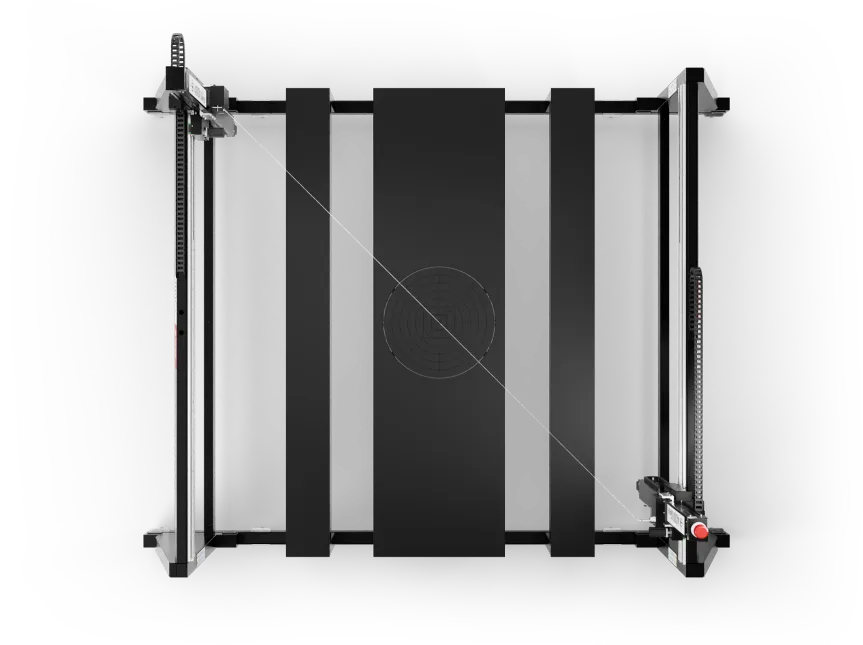

400I is equipped with the automatic wire tensioning system, developed in-house at Nettuno. This system allows the wire to be tilted without limits, reaching the maximum diagonal.

The high wire inclination angle, which can reach the system’s maximum diagonal, allows the CNC polystyrene cutting machines to perform extremely complex cuts, which are impossible to achieve with traditional machines.

Transmission. Accuracy. Fluidity.

The foam cutting machine’s motion control system relies on high-precision servo motors. These motors are specifically chosen for their ability to deliver accurate control over speed and position, allowing the system to respond dynamically and perfectly adapt to the specific requirements of each cutting task. This precise control translates directly to the quality and accuracy of the final cut.For the physical movement along the axes, the system utilizes high-quality linear guides. These guides are paired with low-friction carriages and driven by ball screws. This combination is critical for ensuring exceptionally smooth operation, minimizing any potential judder or vibration during movement.Furthermore, the use of low-friction components and robust guides significantly minimizes mechanical wear, contributing to the machine’s long-term accuracy and reliability.

Worktable design

The design of the worktable made in high density wood fiber for the 400I Sniper machine prioritizes operational accuracy and longevity. The specific material selected for the table top is crucial; it has been chosen explicitly to ensure a perfectly flat and stable reference surface.

This high degree of flatness is essential for maintaining cutting accuracy, particularly when working with small or intricately detailed objects where even minor surface variations could compromise the result.

How to use our hot wire foam cutting machine

The Nettuno Sistemi foam cutting machine, 400I Sniper is engineered with the adaptability required to serve diverse industrial and creative needs.

It is specifically designed to meet the rigorous demands of several industrial sectors by providing a reliable combination of precision cutting and operational versatility.

This allows users across different fields to leverage the Sniper’s capabilities for their specific foam processing requirements.

Structural and Decorative Building

Graphics and 3D Signage

Scenography

Amusement Parks

Visual communication

Indoor and Outdoor Furniture

Exhibition Stands

Packaging

Keypad

The Series Sniper comes with a handy wireless handheld keypad for jog, play & pause, stop, speed adjustment, chuck rotation, and axis readouts, so you can move freely and monitor every stage of the cut with ease.

Nettuno Software

With the Series Sniper, you’ve always got our in-house Nettuno software at your side—it’s like having an expert technician ready to fine-tune every hot-wire foam cut. Plus, its dedicated optional extras unlock a world of bonus features just waiting to be explored.

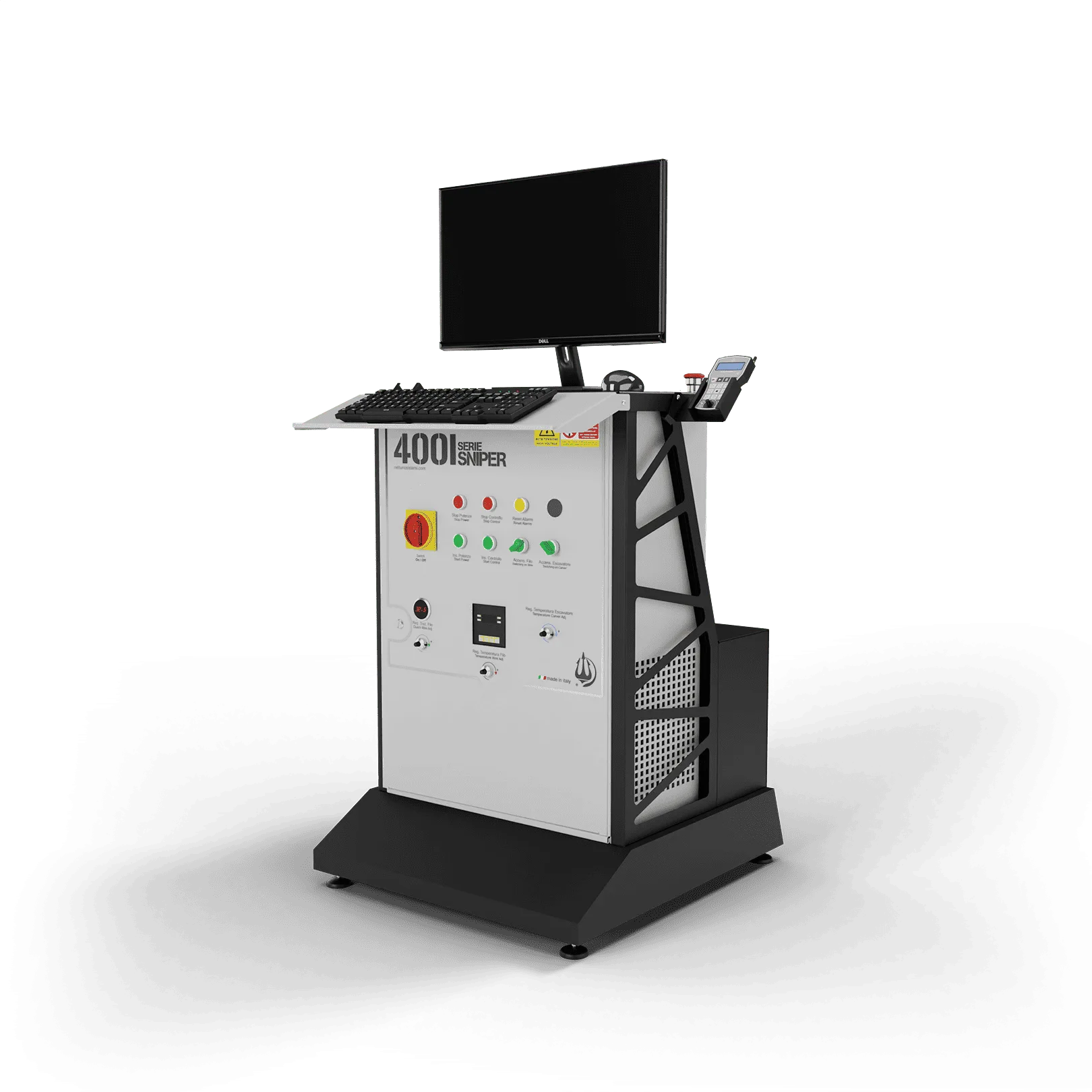

Foam machine control station

Maximize your productivity from day one. This system includes a dedicated professional workstation, fully equipped with an integrated HMI and all necessary Nettuno Sistemi software pre-configured for seamless operation.

Powered entirely by robust Dell hardware – chosen specifically for its proven speed and dependability – this workstation guarantees efficient control and consistent, high-throughput performance.

Power up your workflow

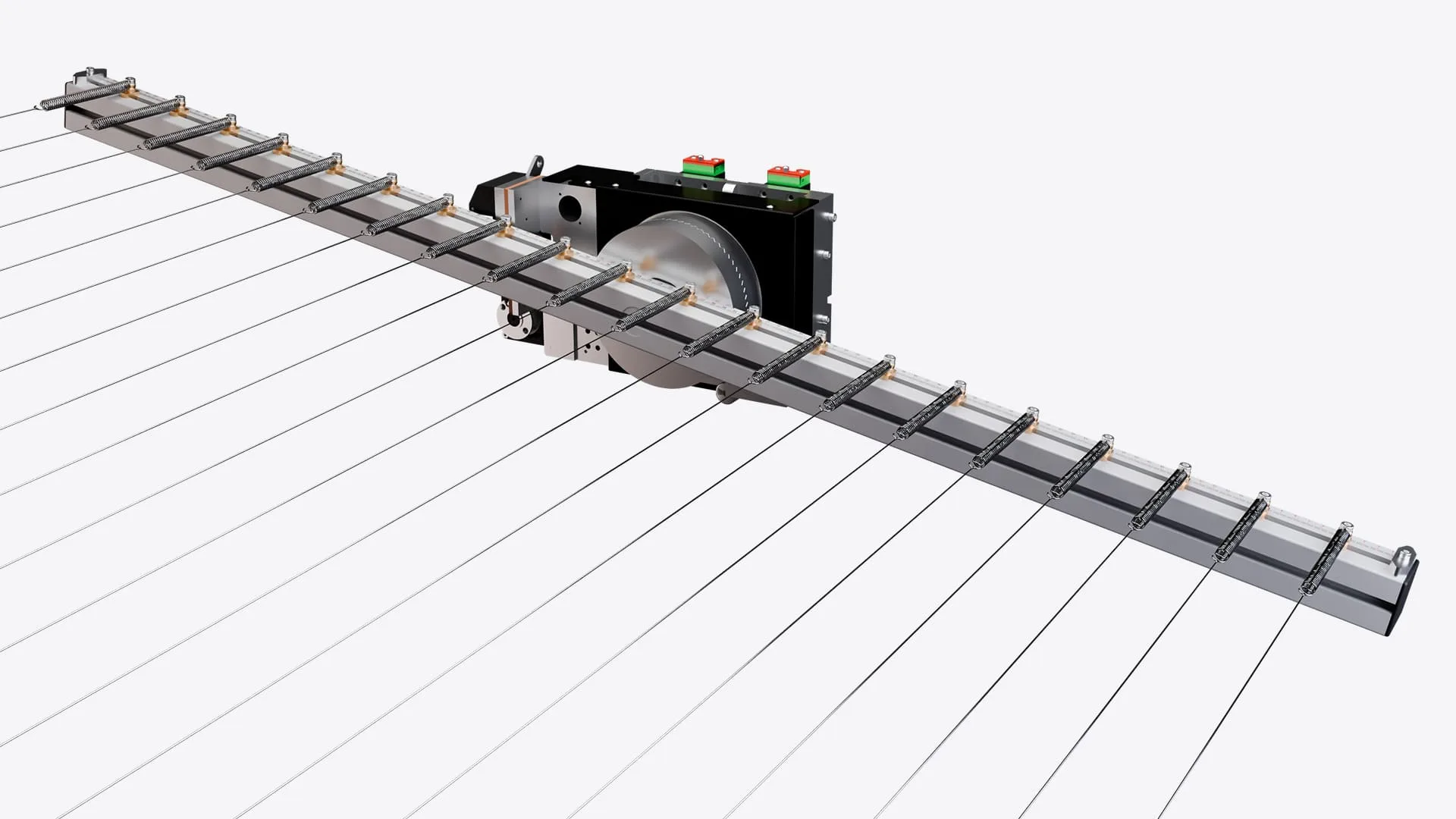

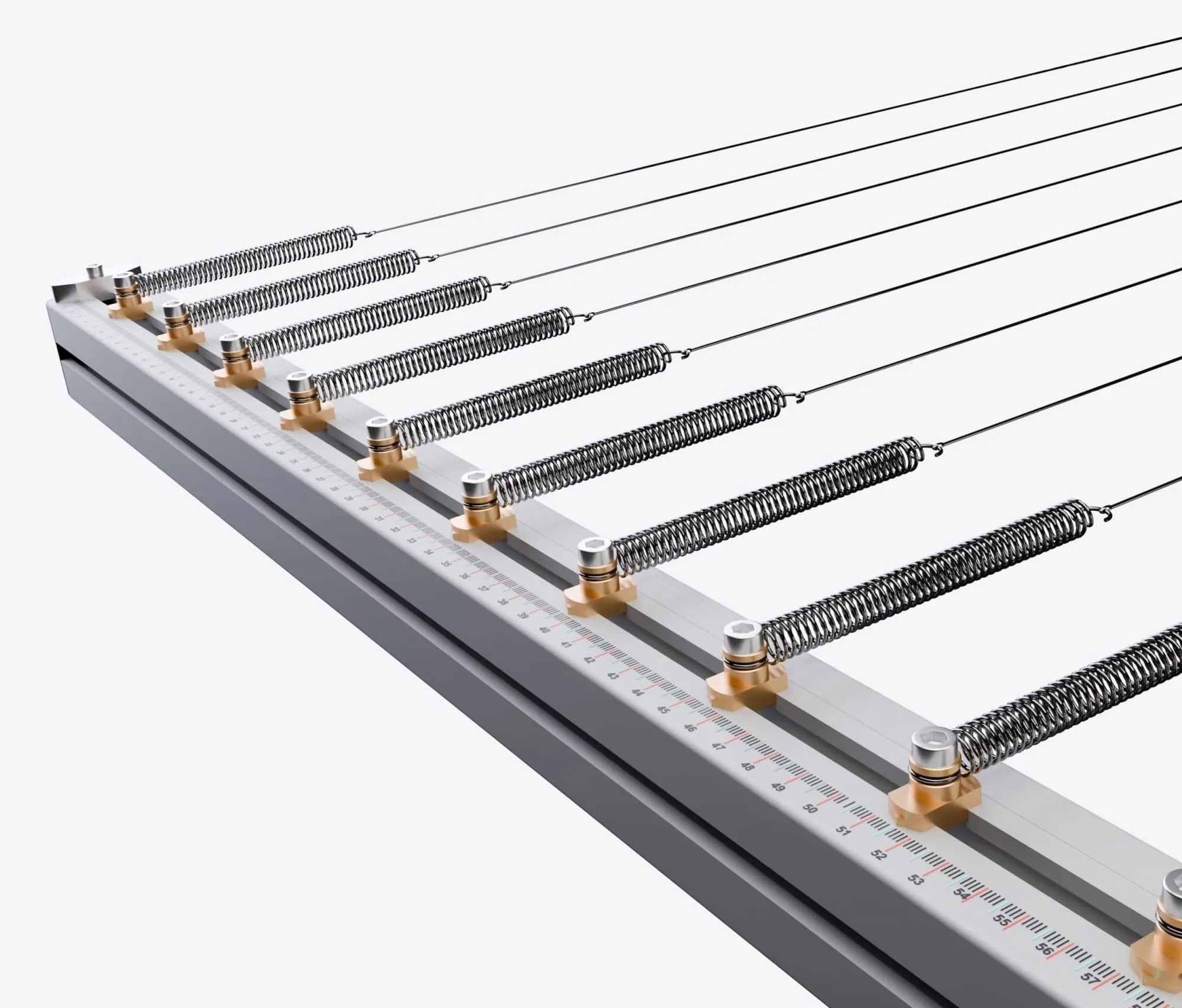

Multiple wire harp

It can cut polystyrene blocks with more than one wire simultaneously, processing multiple pieces of the same shape in a single movement.

Vertical turntable

Used for 360° cutting of 3D shapes in polystyrene, whether they are symmetric or asymmetric, irregular, spheres, columns, characters, and figures.

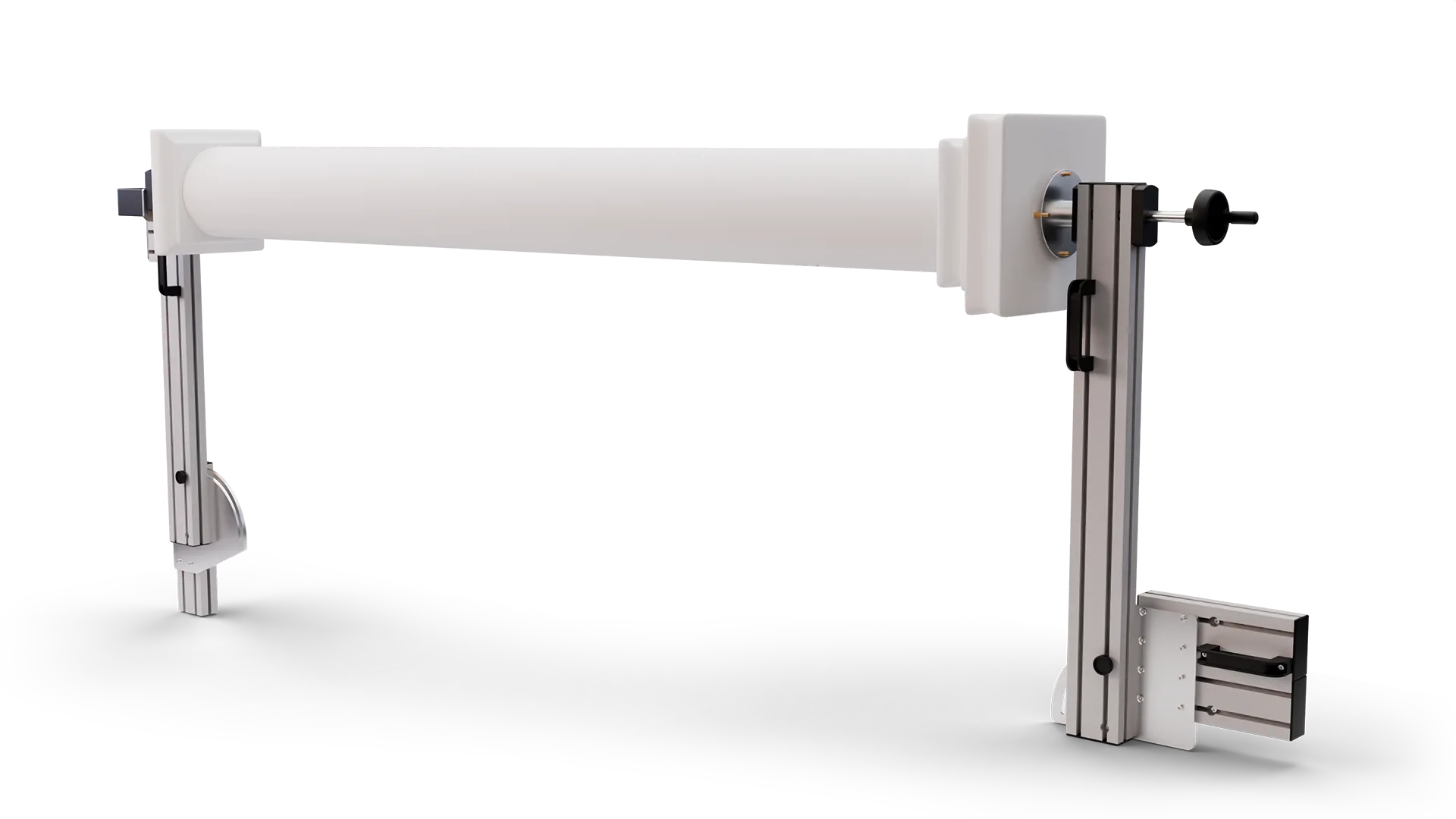

Horizontal lathe

The horizontal lathe, unlike the vertical one, is equipped with a tailstock that allows the processing of the polystyrene block at 360° along the entire length of the machine.

Carver

The carver uses a rigid wire that can be manually shaped according to your needs, allowing you to create cavities within pre-shaped forms or produce unique and customized shapes.

Clevel

Automatic wire speed adjustment system. It prevents errors, inaccuracies, and defects caused by a cutting speed that has not been determined through proper checks and controls.

Technical features

Hardware
Overall dimensions	4200 x 3200 x 2050 mm
Cutting area	X 2620 mm \| Y 1250 mm \| Z 2500 mm
Structure	Milled steel and anodised aluminium profiles
Maximum axes speed	13 m/min
Movement accuracy	+/- 0.05 mm
Wire length	2500 mm
Cutting wire diameter Ø	0,25 mm
Type of cutting wire	Titanium
Power supply	220/230V 50/60Hz
Single wire absorption	1,5 kW
Wire tensioning	Automatic
Wire temperature regulation	External potentiometer
Motors	Servo
Number of axes	4 independent
X axis transmission	Gear racks and ball bearing guides
Y axis transmission	Bearing screws and ball bearing guides
Table top	Made of Compacmel Plus (high-density wood fibreboard)
Weight	800 kg
Operator console	Included
Handheld keypad	Included
Dell HMI	Included
Side benches	Included
Vertical turntable	Optional
Horizontal lathe	Optional
Carver	Optional
Multiple wire harp	Optional
Clevel	Optional

Discover our CNC hot wire foam cutting machines

Mammut

Infinity Sniper

Plot 250

300C

Double Cut

Made in Italy quality
400I Sniper

Our multilingual technicians guide every Sniper series user—both 400I and 120P—providing continuous support from the very first setup.

Artisanal finishes, advanced numerical control, and integrated Nettuno software make the Sniper Series synonymous with top-quality cuts in every size.


Maximum number of wires	20 wires
Wire length	+ – 2500 mm
Wire cutting diameter	0,30 mm Titanium
Software	Management window
Wire tension	Springs
Wires absorption	Maximum power 8 kW
Wire temperature adjustment	External potentiometer
