Styrofoam recycling machine
Are you wondering how to recycle styrofoam? Here we have the answer for you: the styrofoam recycling machine by Nettuno Sistemi Chips Maker.
This is the perfect XPS and EPS recycling machine for your business and not only does it help you to save extra polystyrene from going to the trash, but it allows you to reuse it, helping the environment.
We developed a foam recycle machine that is the product of more than 25 years of experience in the polystyrene sector and CNC machining.
Grow your business, green your footprint. We make it happen.
A sustainable solution
The commitment to innovation and ecological awareness highlights the potential of recycling technologies as a sustainable solution for waste management. Nettuno Sistemi has introduced a revolutionary system for recycling polystyrene, which transforms EPS and XPS waste into reusable cubes, offering an ecological and practical choice.
Thanks to the recycled polystyrene chips, companies can reduce material costs compared to using new EPS, fostering a cost-effective alternative and promoting broader adoption of eco-sustainable practices.
Foam recycling machine
Expanded polystyrene
Extruded polystyrene
Graphite polystyrene

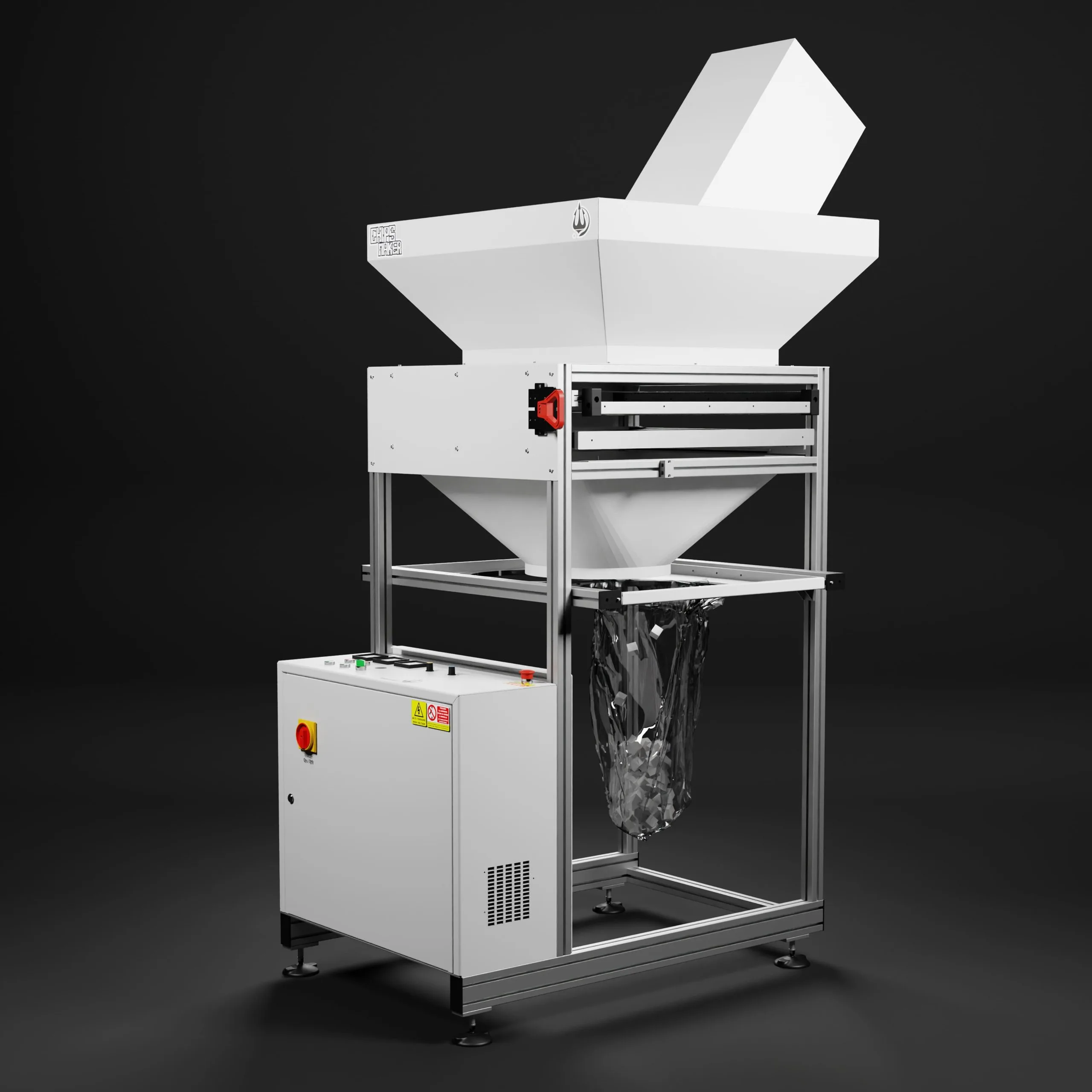

Professional styrofoam recycle machine

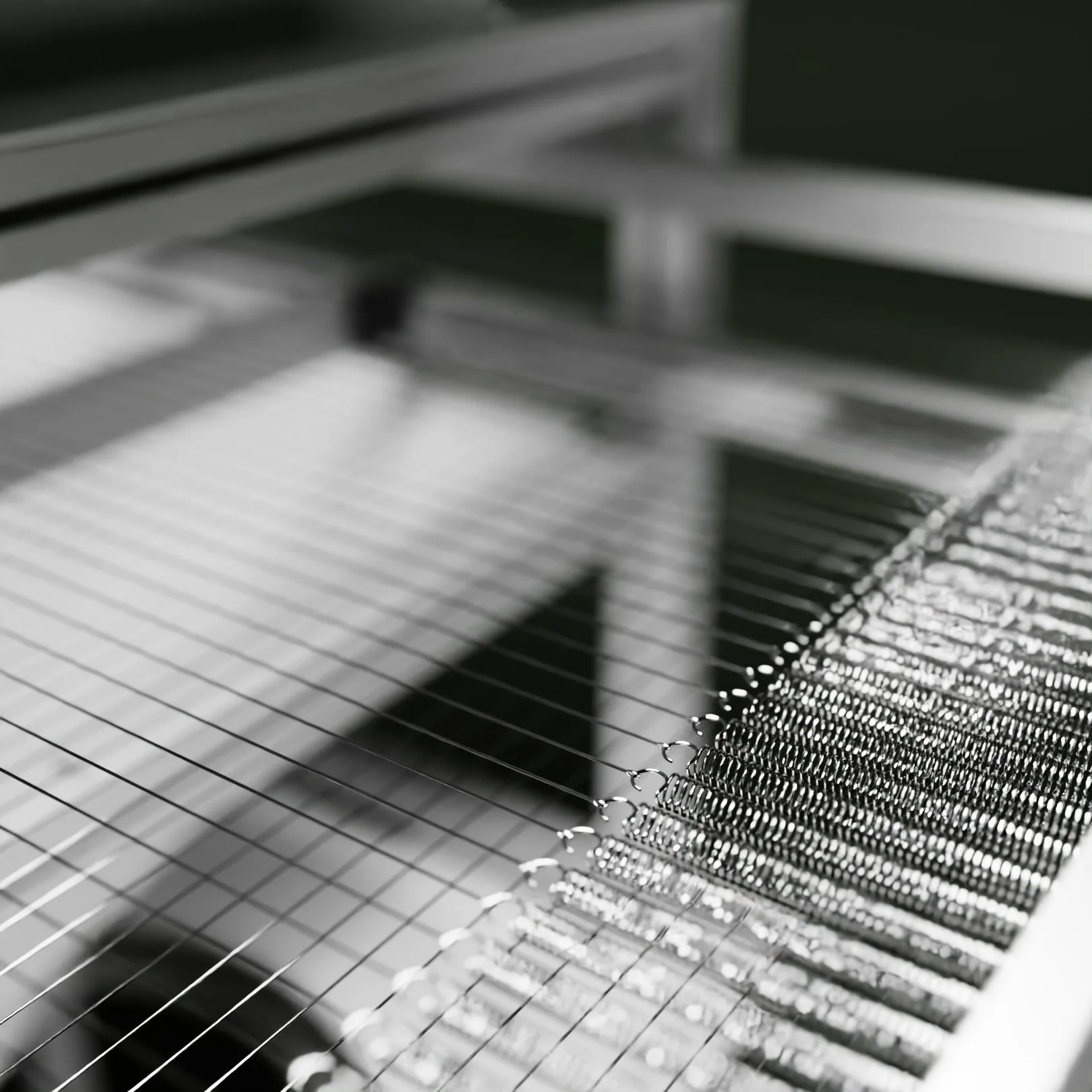

2 multiple wire harps

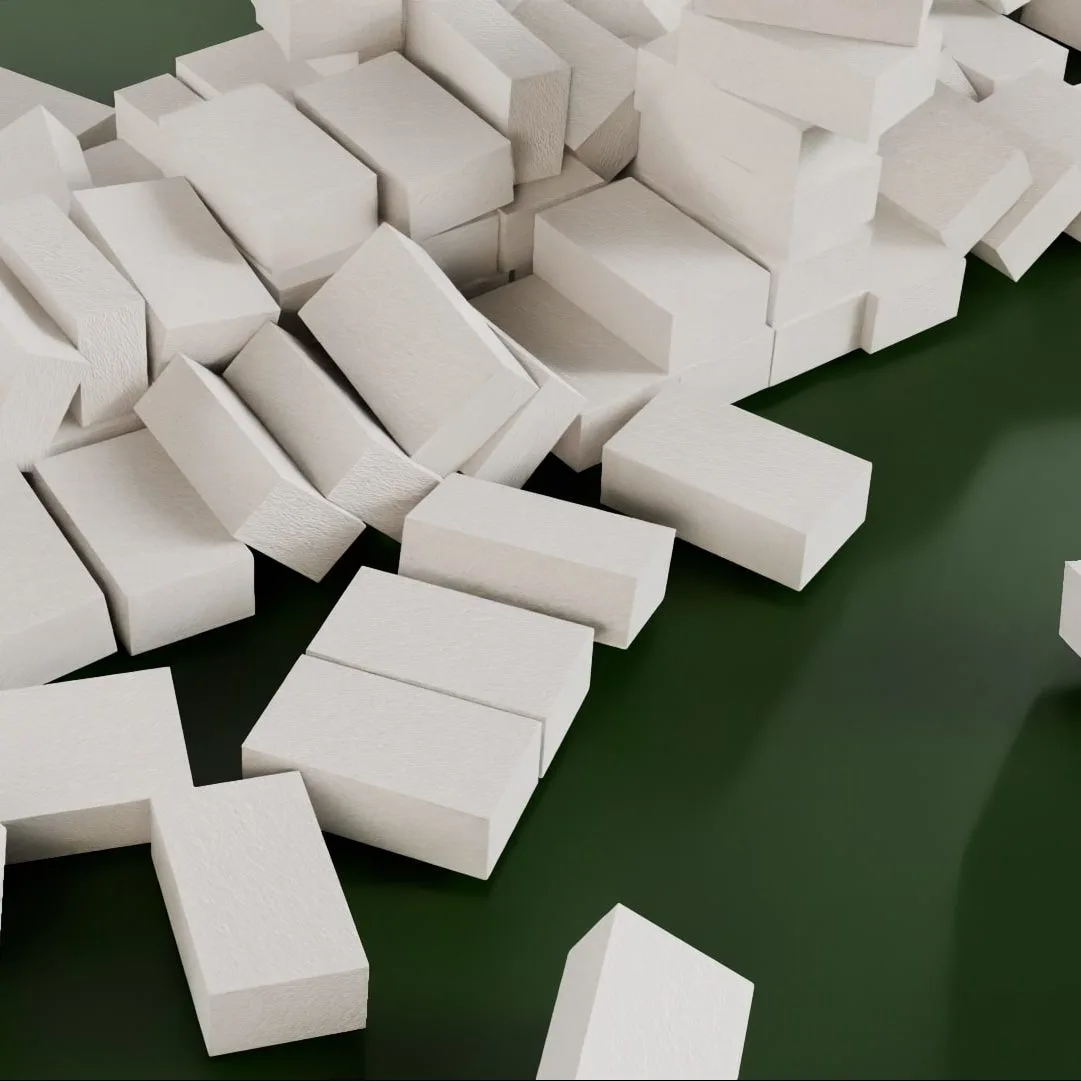

The Chips Maker foam recycling machine is designed to produce polystyrene chips and cubes, ideal for both packaging and recycling.

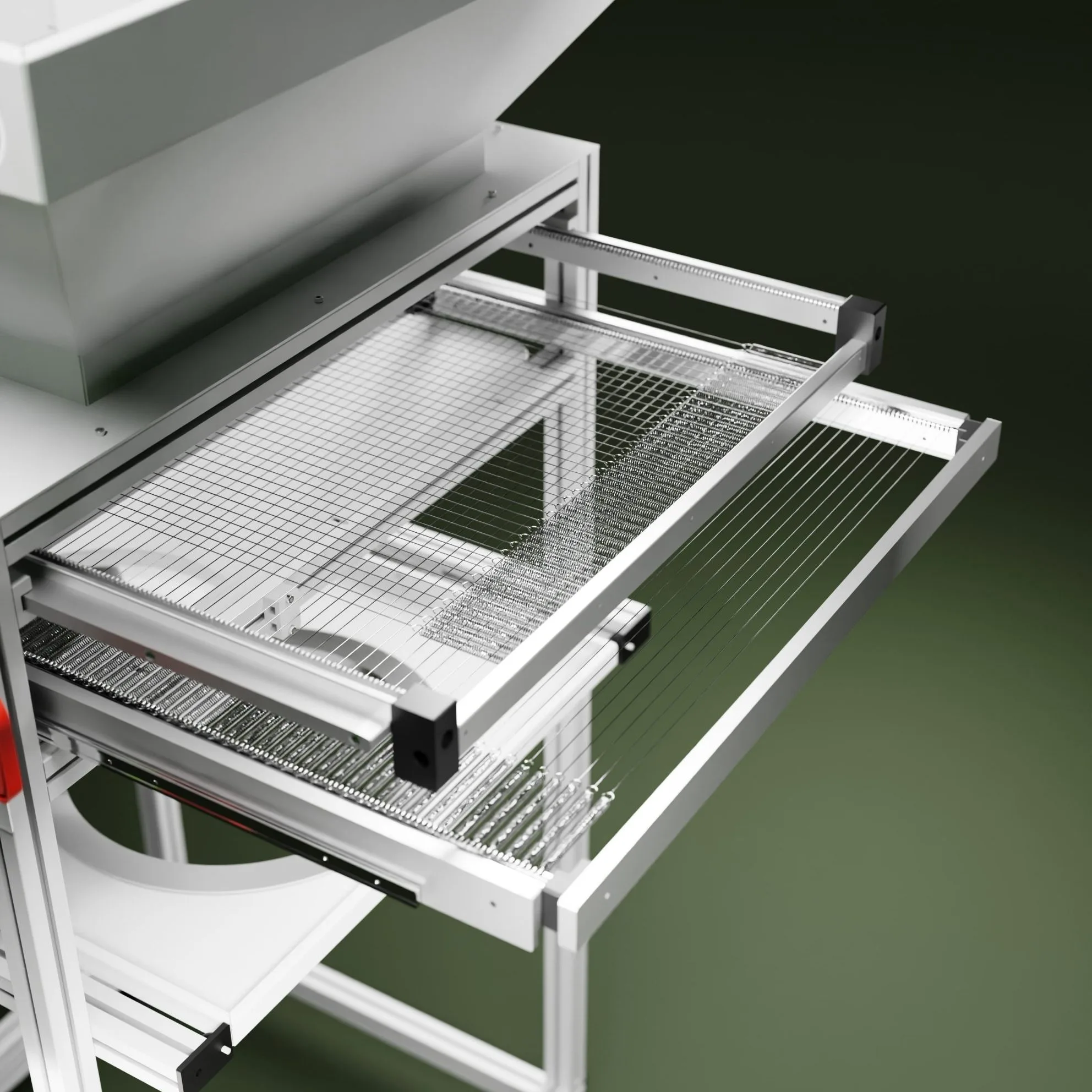

The machine processes EPS and XPS using two crossed multi-wire harps: one fixed, equipped with 80 wires, and one mobile, with 40 wires, for a total of 120 wires.
The double-harp system ensures precise cutting of the material fed into the hopper.
Customizable chip
Thanks to dedicated potentiometers, it is possible to precisely adjust both the speed of the motorized harp and the temperature of the cutting wires, providing complete control over the final size of the polystyrene chips or cubes produced.
This configuration allows for variations in the length and thickness of the shredded material, producing shorter or elongated chips depending on specific needs.
In this way, the recycling machine adapts to multiple production needs, providing a flexible and customizable solution for recycling and processing polystyrene.
How to recycle styrofoam packing material
Harvesting and preparation
The recycling process begins with the collection of EPS waste from various sources, such as production facilities, construction sites, and distribution centers.
To ensure an optimal recycling procedure, the collected EPS waste undergoes thorough sorting, with contaminants or impurities being removed.
Size reduction

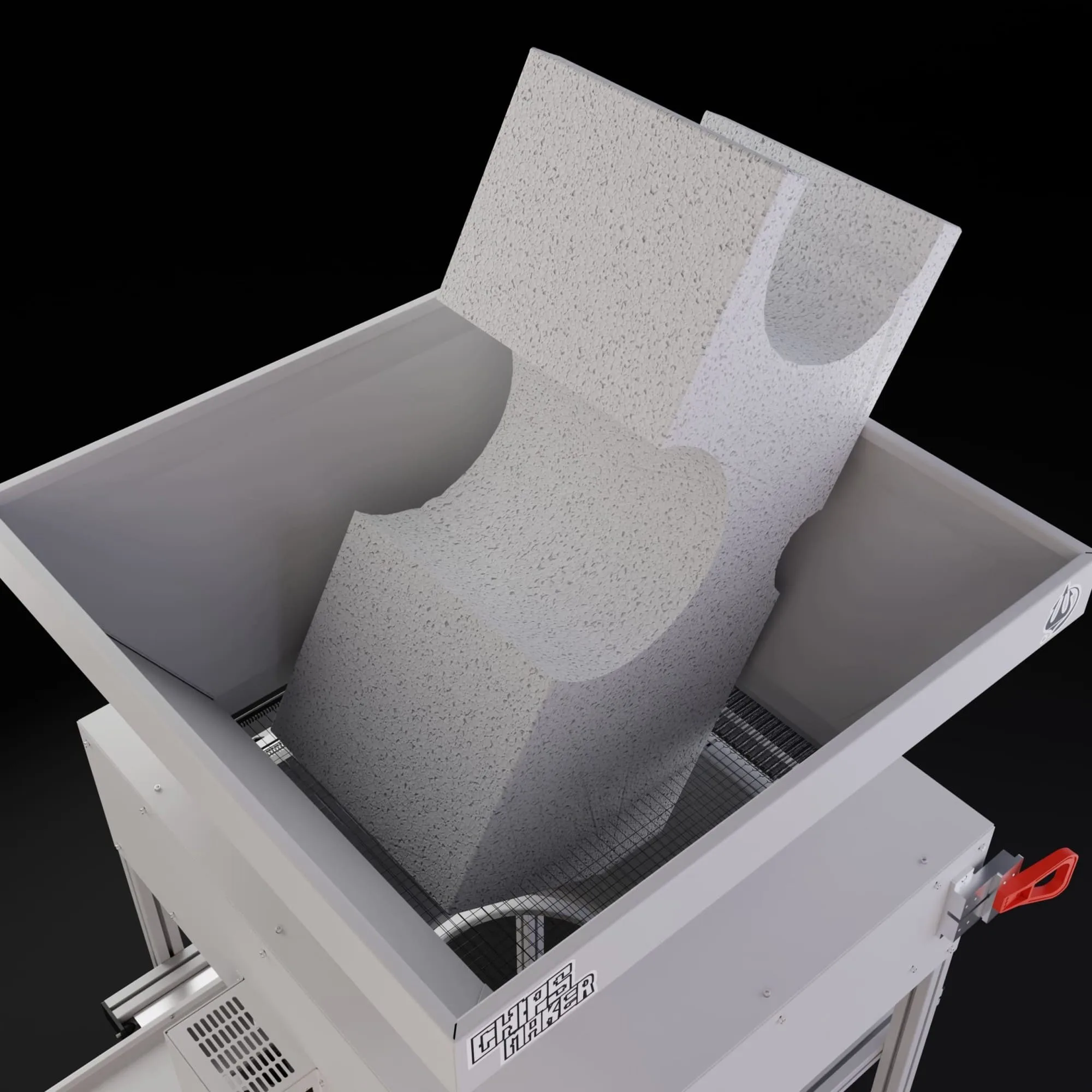

In the next phase, the selected EPS waste is fed into the Chips Maker dicer, where it undergoes size reduction. The chip structure is customizable thanks to the speed adjustment potentiometers and the temperature settings of the harp wires.
Technical features
| HARDWARE | |
|---|---|
Overall dimensions |
1280 x 1065 x 2200 mm |
Number of harps |
2 (1 Stationary with crossed wires + 1 Movable) |
Mobile harp stroke |
30 mm |
Structure |
Anodised aluminium profiles |
Movement accuracy |
+/- 0.05 mm |
Maximum number of wires |
80 stationary harp | 40 movable harp |
Wire length |
670 x 670 mm |
Minimum distance between wires |
15 mm |
Type of cutting wire |
Ø 0,25 mm Ti |
Power supply |
220/230V (1F+N) 50/60Hz 7,5 kW |
Wire tensioning |
Springs |
Wire temperature regulation |
External potentiometer |
Motors |
Stepper |

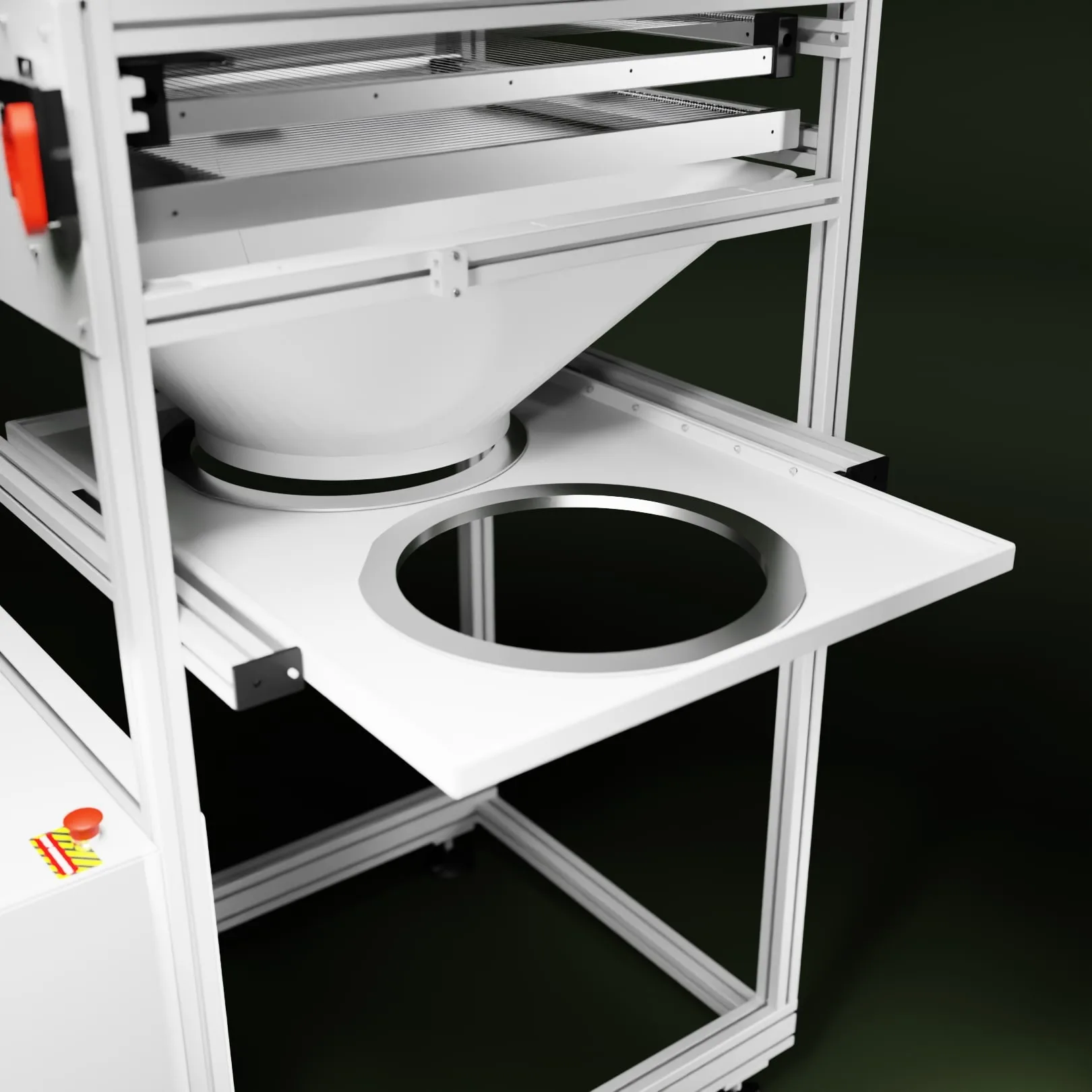

Bag holder discs |
2 |
Inner diameter of the bag sealing disc |
Ø 400 mm |
Height between discharge port and floor |
1100 mm |
Loading hopper |
Height 500 mm; Max. top width 1000×1000 mm; Min. bottom width 620×620 mm |
Weight |
400 kg |
More Nettuno Sistemi machines
Made in Italy quality
The Nettuno team offers its multilingual technicians who will assist the customer even after the on-site training course, providing support in the operations following the sale.
Handcrafted care in construction, the highest quality materials, numerical control technology combined with the Nettuno software, and our experience in the field are the absolute guarantee of the superiority of our hot wire CNC polystyrene cutting machines.
