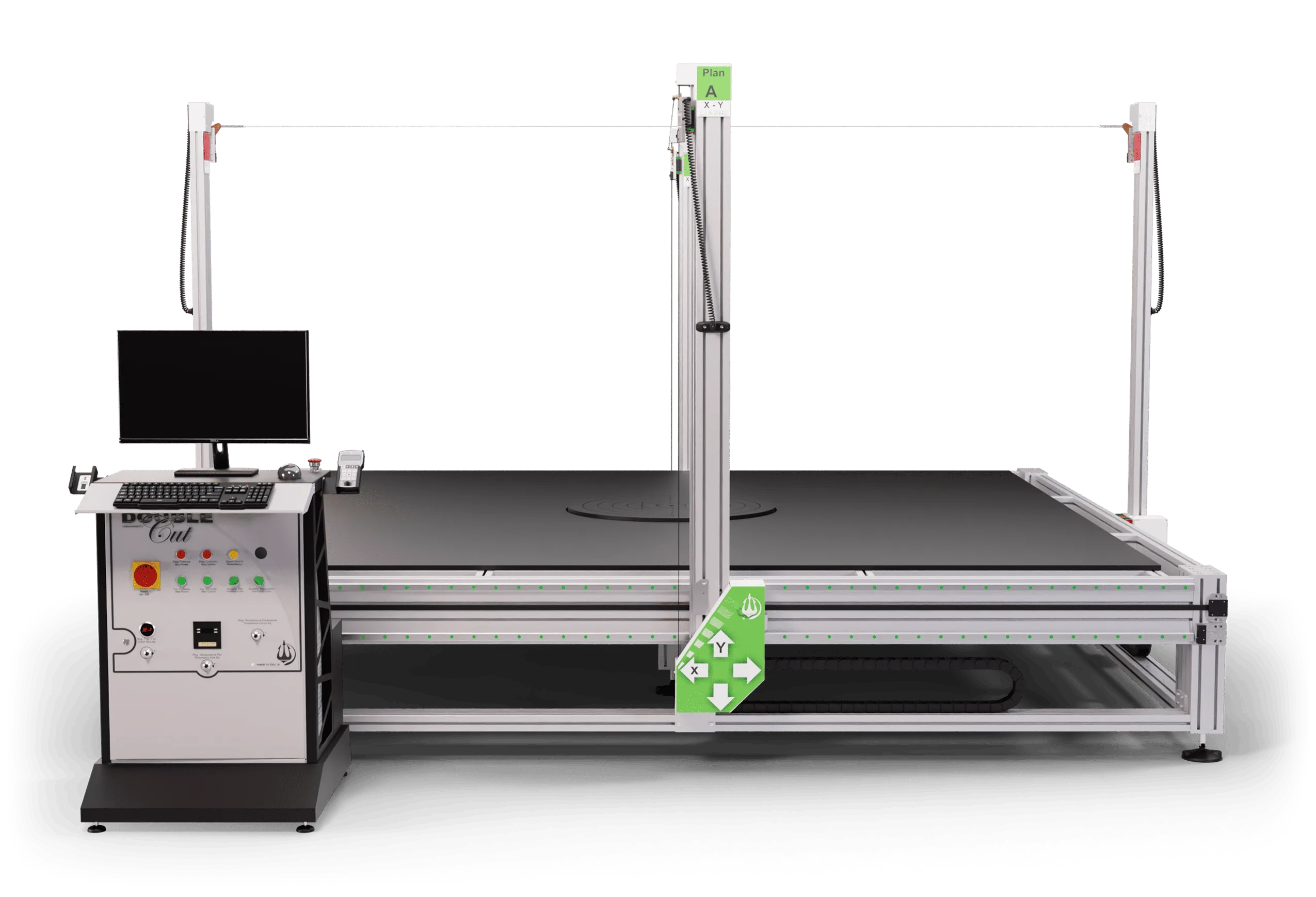

EPS block molding machine

Double cut is an 8 axis molding block machine created to professionally cut EPS and Styrofoam blocks.

Discover our EPS block molding machine

Double Cut is a 8 axis machine (CNC) designed to ensure maximum precision in cutting on all four sides of the polystyrene block.

Ideal for tackling complex cutting needs, this machine offers simple solutions for processing various sizes, from small to large-scale productions.

Thanks to CNC technology, all operations are performed automatically, without the need to move the piece from its initial position.

This EPS block molding machine uses the hot wire technology to cut and mold the styrofoam blocks.

Our molding block machine works on

Expanded polystyrene

Extruded polystyrene

Graphite polystyrene

The cutting area

Double Cut is a molding block machine that features an advanced sliding system on ball recirculation guides and a toothed belt, ensuring precision and smooth movements.

With a cutting area of 2500 mm in A, 1250 mm in Y, and 2300 mm in B, it is perfect CNC 8 axis machine for a wide range of applications.

The open-frame structure facilitates access and visibility, making the machining process more efficient and allowing for better control during operations.

Versatility of Double Cut

Wire inclination

8 independent axis

Two wires are configured orthogonally (at 90 degrees) on the 8 axis machine. A single control interface directs their independent movement along separate axes.

This independent, multi-axis control allows the wires to address the work-piece without requiring it to be moved from its initial fixed position.

Thanks to the high inclination angle of the wire, the machine allows for the execution of extremely complex cuts, which would be impossible with traditional machinery.

How it works

The Double Cut system incorporates stepper motors for actuation. Motion is achieved via a drive system comprising a toothed belt transmission and linear guides featuring recirculating ball bearings.

This configuration ensures smooth travel and high positional accuracy throughout the EPS block molding process.

Structure

The EPS block molding machine’s open frame structure, made of anodized aluminum profiles, allows the material to be placed on the work surface without obstructions from structural limits, providing maximum freedom of movement.The table top of Double Cut is made of Compacmel Plus, a high-density wood fiber panel selected to ensure a perfectly flat surface.

Block molding machine uses

Our 8 axis machine Double Cut is designed to meet the needs of various sectors, in order to offer precision and versatility.

Structural and Decorative Building

Thermal and Acoustic Insulation

Packaging

Remotely control your machine

The wireless handheld controller included with the Double Cut lets you manage operations like jog movement, play & pause, stop, speed adjustment, lathe rotation, and axis position display.

It’s designed to free the operator from the fixed workstation, making it easy to stay close and monitor the cutting process in real time.

Nettuno Software

A specialist in construction, insulation, and packaging, Double Cut comes with our in-house developed Nettuno software, allowing you to control multiple axes at once and easily handle even the most complex cuts on every side of the block.

Unlock extra features by adding the optional carver and vertical turntable.

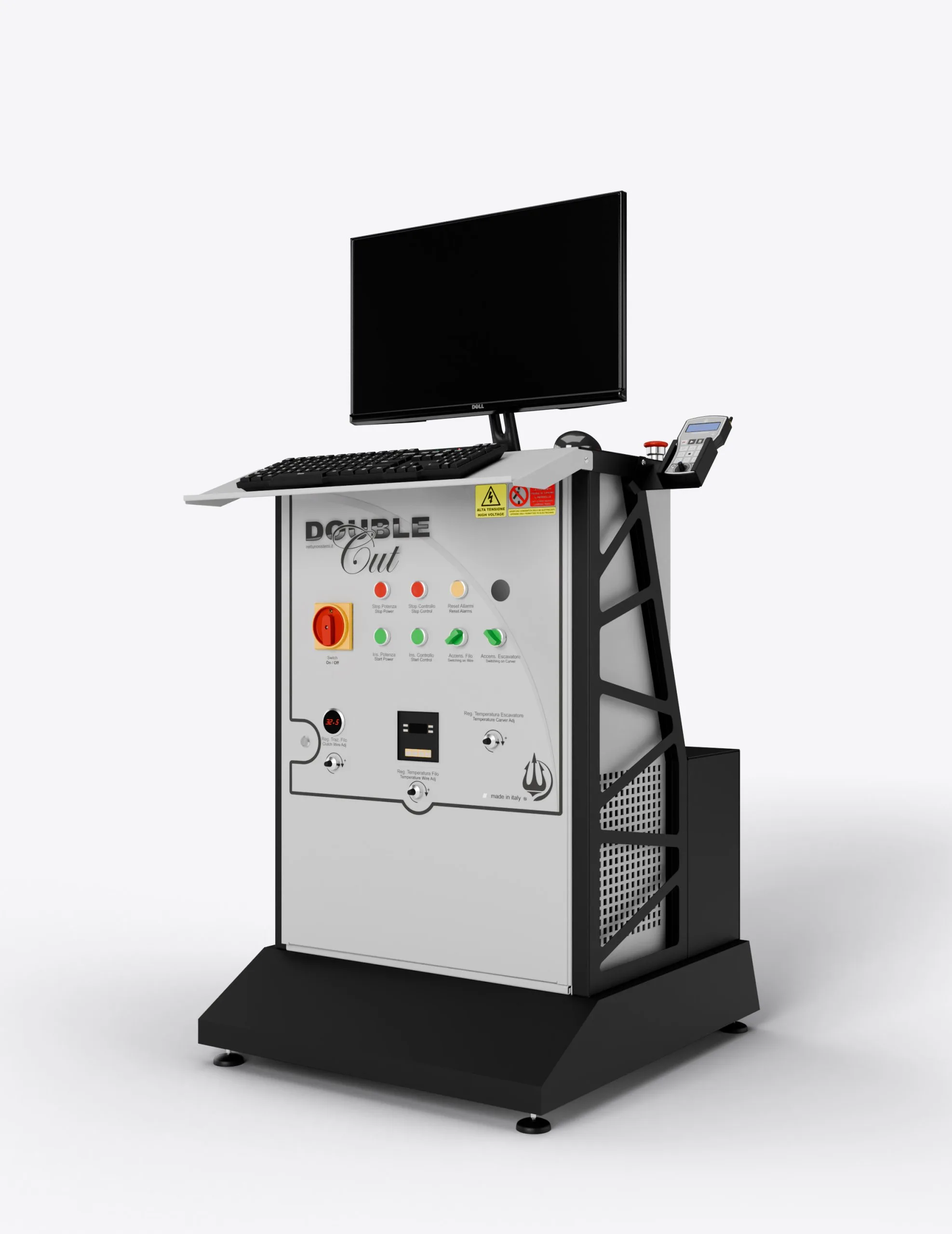

Double Cut operator console

Integral to the Nettuno Sistemi Double Cut machine is a professional-grade workstation.

This unit includes the dedicated Human-Machine Interface (HMI) and comes pre-loaded with all necessary Nettuno Sistemi software for immediate system operation.

To ensure high performance and proven reliability, all workstation hardware components are sourced exclusively from Dell.

Customize your Double Cut

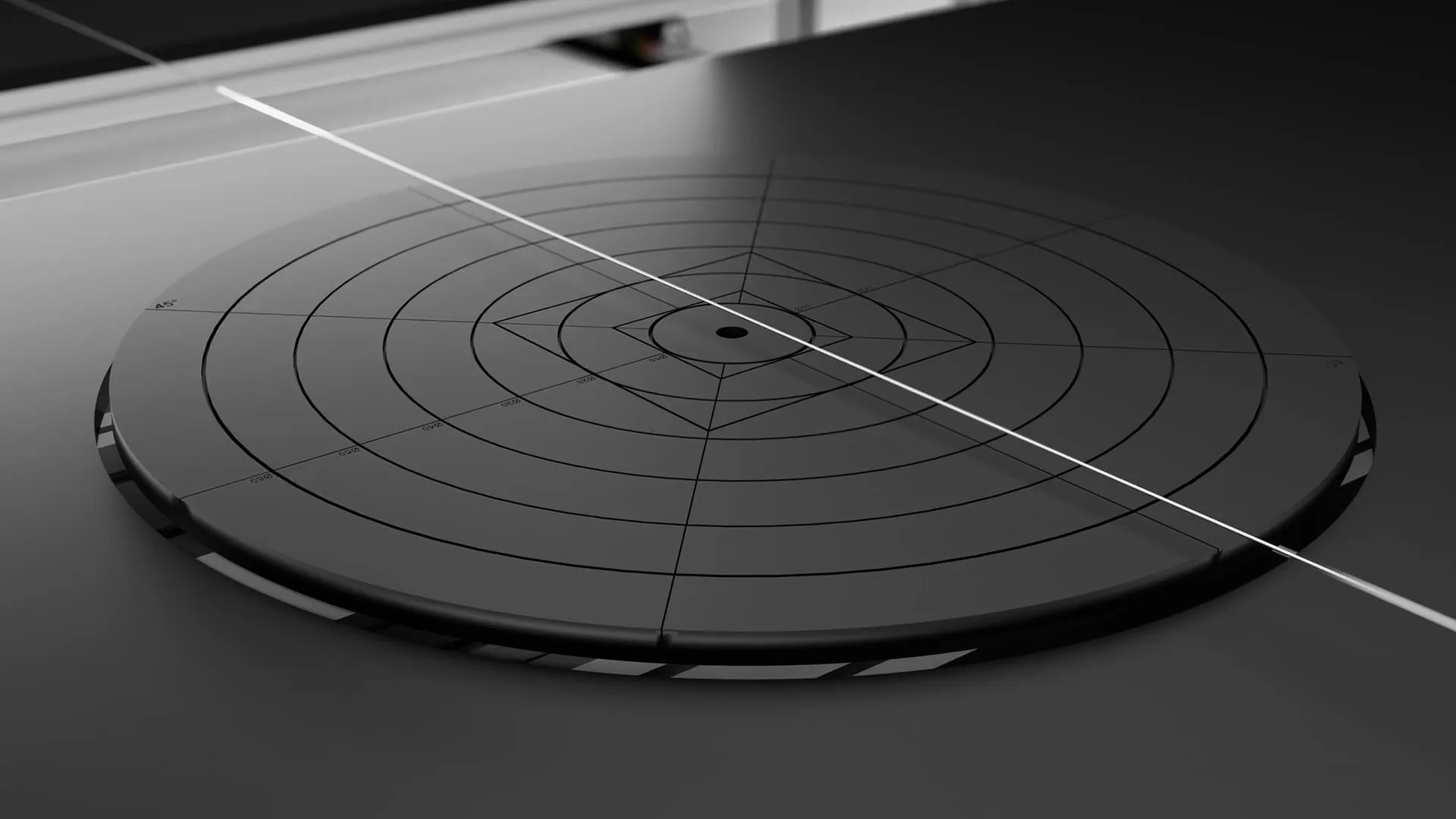

Vertical turntable

Used for 360° cutting of 3D shapes in polystyrene, whether they are symmetric or asymmetric, irregular, spheres, columns, characters, and figures.

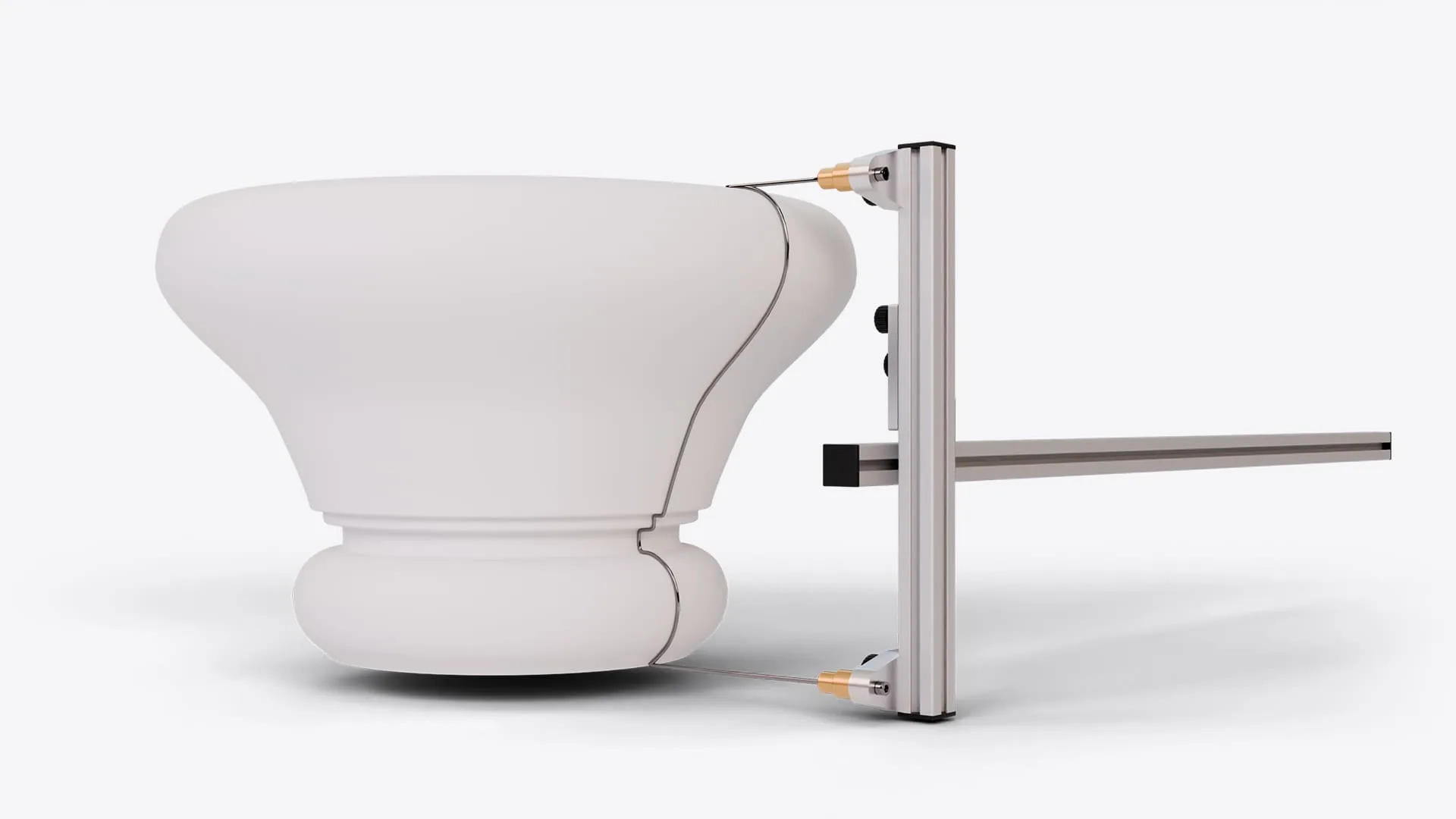

Carver

The carver uses a rigid wire that can be manually shaped according to your needs, allowing you to create cavities within pre-shaped forms or produce unique and customized shapes.

Technical features

HARDWARE
Overall dimensions	3300 x 3200 x 2000 mm
Cutting area	Z A 2500 mm \| Y 1250 mm \| Z B 2300 mm
Structure	Anodised aluminium profiles
Maximum axes speed	13 m/min
Movement accuracy	+/- 0.05 mm
Wire length	Plan A 2500 mm \| Plan B 2300 mm
Cutting wire diameter Ø	0,25 mm
Type of cutting wire	Titanium
Power supply	220/230V 50/60Hz
Single wire absorption	1 kW
Wire tensioning	Springs
Wire temperature regulation	Potenziometro esterno
Motors	Stepper
Number of axes	8 independent
X-Y axes transmission	Ball bearing guides and toothed belts
Table top	Made of Compacmel Plus (high-density wood fibreboard)
Weight	500 kg
Operator console	Included
Handheld keypad	Included
Dell HMI	Included
Vertical turntable	Optional
Carver	Optional

Find out other EPS machines

Mammut

Infinity Sniper

400I Sniper

Plot 250

300C

Made in Italy quality
Double Cut

When you choose Double Cut, our multilingual technicians are by your side from the very first test cut to fine-tuning your production process.

With precision mechanics, two crossed wires powered by 8 independent axes, and our proprietary Nettuno software, Double Cut delivers full 4-side cutting — without ever moving the block.
